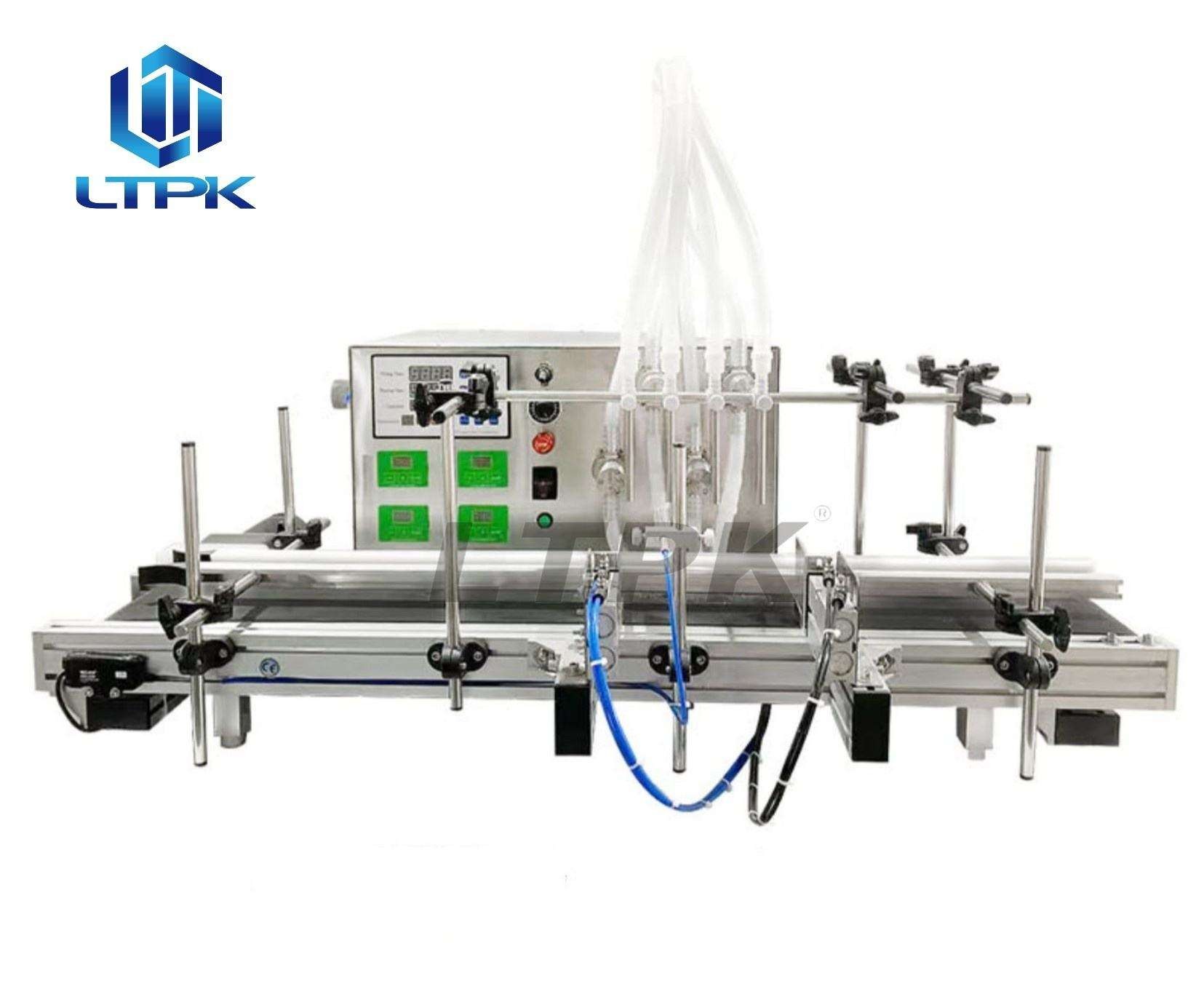

LT-DMPF4HA Diaphragm pump Four Nozzles Filling With Conveyor Belt

LT-DMPF4HA Diaphragm pump Four Nozzles Filling With Conveyor Belt

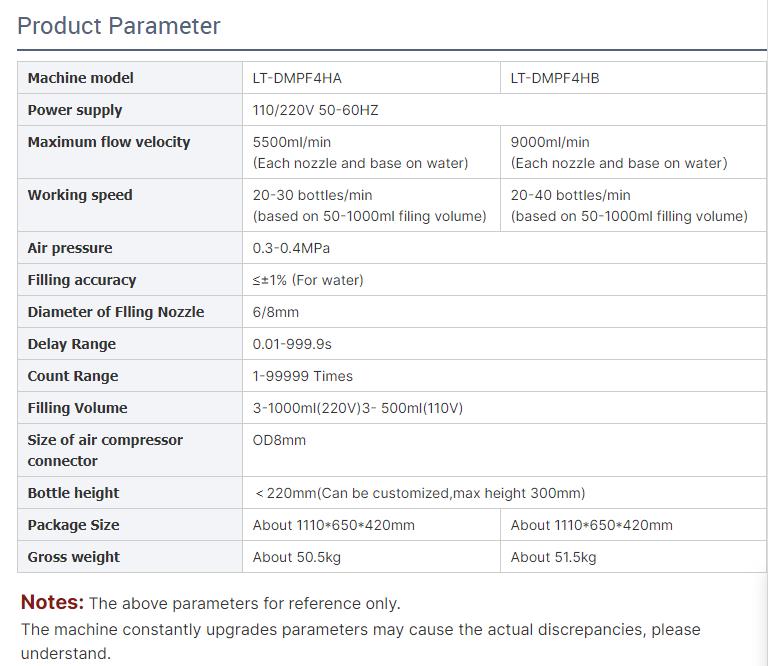

Machine model：LT-DMPF4HA/LT-DMPF4HB
Power supply：110/220V 50-60HZ
Maximum flow velocity：5500ml/min&9000ml/min
(Each nozzle and base on water)
Working speed：20-30 bottles/min
(based on 50-1000ml filing volume)
Air pressure：0.3-0.4MPa
Filling accuracy：≤±1% (For water)
Diameter of Flling Nozzle：6/8mm

Food Grade Stainless Steel Magnetic Pump Conveyor Belt Liquid Filling Machine Essential Oil Essence Liquid Filling Machine (2).jpg

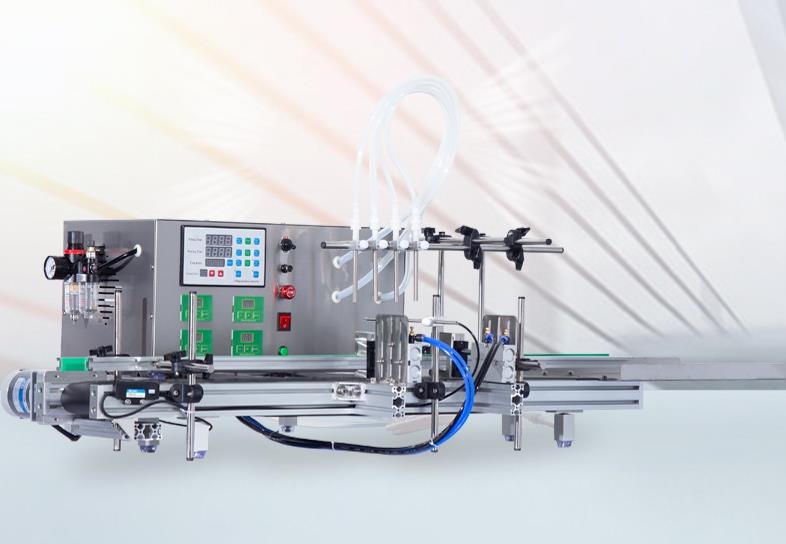

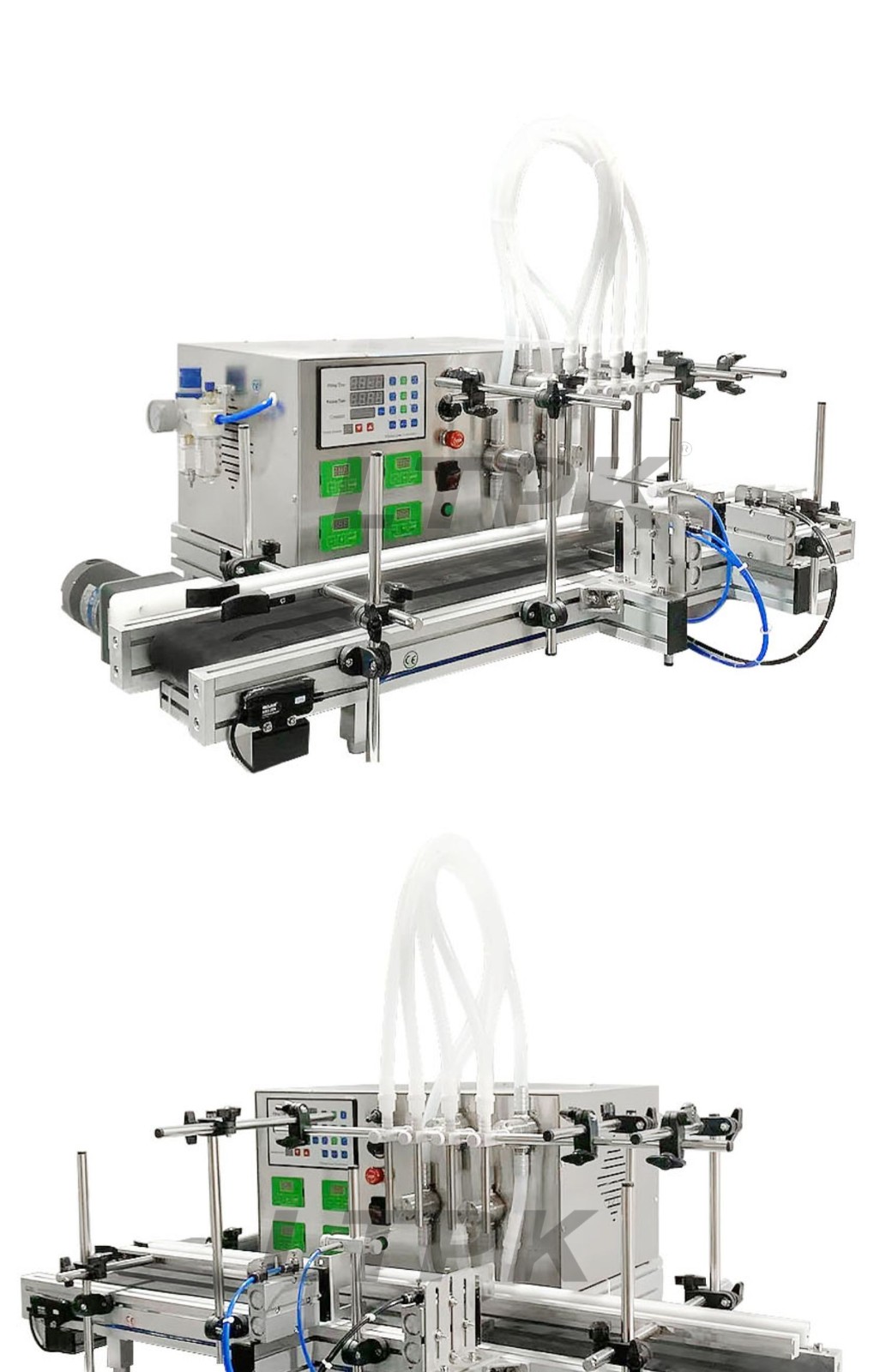

LT-DMPF4HA Diaphragm pump Four Filling Nozzles Desktop Automatic Liquid Filling Machine With Conveyor Belt Oil Cosmetic Filler (1).jpg

Application of machine

It is suitable for various corrosive,low viscosity and non-particulate liquids,such as: various chemicals (oil , liquor, alcohol, eye drops, syrup), chemicals(solvent,acetone), oil (edible oil, essential oil) ), cosmetics (toner, makeup remover, spray), food (100 degree high temperature, such as milk, soy milk), beverage (juice,fruit wine),seasoning (soy sauce vinegar) and other non-particulate liquid;high and low foam liquid ( Care solution,detergent).

Automatic Perfume Gallon Water Jam Jar Hand Cream Sachet Filling Machine Liquid Oil Diaphragm pump Filling Machine With Conveyor (1).jpg
